TUFFLIFT – TLR4.0OH

Features


  • 4.0 Ton lifting capacity
  • Single lock release
  • Designed for low ceiling clearance
  • Asymmetric arms
  • Available in single or three phase power
  • 110mm concrete requirement

2 Post Car Hoist | 4 Ton Clear Floor – TLR4.0OH


Includes:

  •  Hydraulic oil
  • Screw pads
  • 4 piece pad adapter set
  • Anchor bolts

Options:

  • EV Charge Station

Warranty

  • 5 years (structure) + 1 year electrical, mechanical, hydraulics. Parts & labour
  • Certification
  • Engineer Certified
  • Design Registered with Worksafe

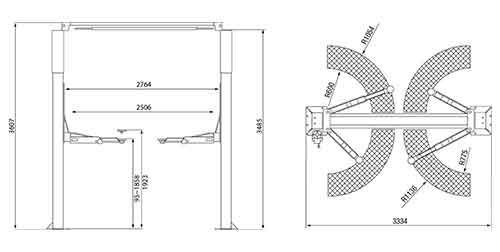

Specifications


  • Capacity: 4000Kg
  • Minimum Concrete Requirement: 110mm
  • Recommended Ceiling Height: 3.7m
  • Overall Height: 3607mm
  • Overall Floor Width (without motor): 3334mm
  • Max lift Height (with out adaptors): 1822mm
  • Max lift Height (with adaptors): 1923mm
  • Min Pad Height: 95mm
  • Width Between Columns: 2764mm
  • Drive Through: 2506mm
  • Column thickness of steel: 5 Gauge (5.08mm)
  • Power: 240v: 2.2kw 15 amps | 3 phase: 2.2kw 7 amps
  • Freight Dimensions: L 2900mm W 480mm H 1100mm W 680KG
