TUFFLIFT 5.5T CF HOIST

Features

  • 5500KG Safe Working Limit
  • Lifting height of 1.85m (plus adapters and screw pad adjustment)
  • Clear floor design
  • Single lock release
  • Available in 240V or 3 Phase power
  • Durable Powder Coating
  • Overhead Cable equalization
  • Spring operated arm restraints.
  • Hydraulic cylinders in each column with full stroke and cylinder rod concealed inside carriage
  • 3 stage arm design

5.5 Ton 2 Post Overhead


Includes

  • Hydraulic oil

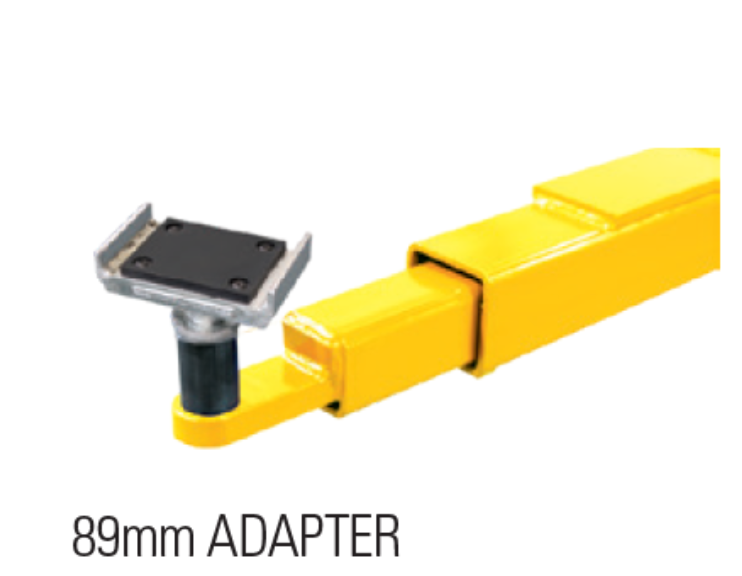

  • Pad adapter set
  • Anchor bolts

Options:

  • Height extension kit
  • Width extension kit

Safety

  • Anti-surge valve
  • Automatic mechanical carriage locks
  • Automatic mechanical arm locks
  • Rubber protected height limit switch bar

Warranty


Specifications

  • Capacity: 5500 kg
  • Lock Release: Single
  • Power: 240V or 3 Phase
  • Lifting Height: 1848mm
  • Lifting Height with Adapters: 1975mm
  • Minimum Pad Height: 121mm
  • Overall Hoist Height: 4216mm (+ op ext)
  • Overall Hoist Width: 3556mm (+ op ext)
  • Lifting Time: 60sec
  • Arm Design: 3 Stage Symmetric
  • Front Reach (Min/Max): 891mm/1372mm
  • Rear Reach (Min/Max): 891/1372 mm

Options

  • Height with extension kit: 4521mm
  • Width with extension kit: 3708mm
  • Freight Dimensions: L 3500mm W 540mm H 1100mm W 950KG



Specifications

Sales Sheet
