TUFFLIFT BASEPLATE - EEF9

Features

  • 5500KG Safe Working Limit
  • Lifting height of 1.85m (plus adapters and screw pad adjustment)
  • Clear floor design
  • Single lock release
  • Available in 240V or 3 Phase power
  • Durable Powder Coating
  • Overhead Cable equalization
  • Spring operated arm restraints.
  • Hydraulic cylinders in each column with full stroke and cylinder rod concealed inside carriage
  • 3 stage arm design

Description


4 Ton Base plate - EE-F9

2 Post – 4 Ton – Base plate – Combination Pad


Includes

  • Hydraulic oil
  • Combination screw pads and 4 x adapters
  • Anchor bolts

Options

  • Tyre Adapter
  • EAE Tyre Holder Adapter
  • Zappi 7kw Untethered EV Charge Station

Safety

  • Anti-surge valve
  • Automatic mechanical carriage locks
  • Automatic mechanical arm locks
  • Standard column curtain

Warranty

  • 5 years (structure) + 1 year electrical, mechanical, hydraulics. Parts & labour
  • Certification
  • Engineer Certified
  • Design Registered with Worksafe

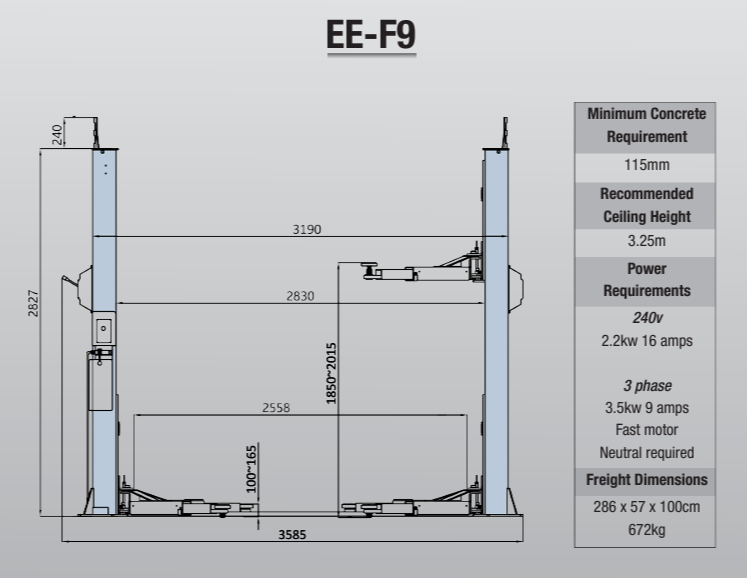

Specifications

  • Capacity: 4000 kg
  • Lock Release: Single
  • Power: 240V or 3 Phase
  • Lifting Height: 1800mm
  • Lifting Height with Adapters: 1860mm
  • Minimum Pad Height: 100mm
  • Overall Hoist Height: 3067mm

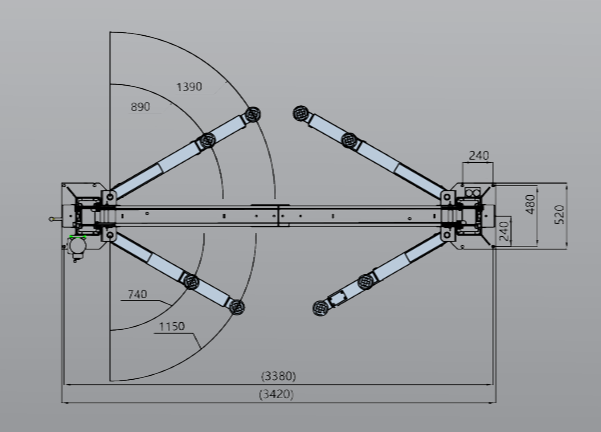

  • Overall Hoist Width: 3420mm
  • Drive through clearance: 2558mm
  • Lifting Time: 55sec
  • Arm Design: Asymmetric
  • Freight Dimensions: L 2860mm W 570mm H 1000mm W 672KG
